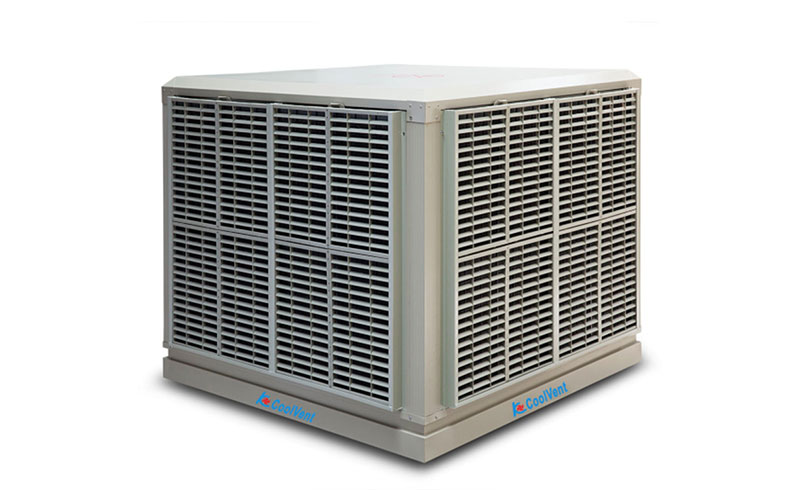

KCV-30DS Down Discharge

Factory Model: KCV-30DS Down discharge

Power (kW): 2.2kW

Air Flow(m3/h): 30,000㎥/h 17,670 CFM

Product Introduction

Specification & Features


Power / Current: 2.2kW / 5.6A

Voltge / Frequency: 380-415V / 50~60Hz

Motor Class: Grade F, IP55, copper wire motor

Aluminum alloy 12-blade fan / Axial-flow

LCD panel control

1 wind speed

Noise Level: <= 85dB(A)

Water Tank Capacity: 65L

Water Consumption: 65L/H

Ducting Distance: 25-30 meters

Air Pressure: 200Pa

Sizes of Cooling Pad: 1000x1000x100mm *4 pcs

3pcs of Cooling Pad for Side Charge Unit

Size of Air Outlet: 800*800mm

Applicable  Area(㎡): 200-250 m²


1) Water shortage protection & alarm

2) Stainless steel bottom base, top cover and  stand column, plastic cooling pad frame with  dust filters and cooling pads-5090

3) Efficient fan motor-6pole 930RPM

4) Auto-protetive device

5) Balanced heavy-duty steel fan wheel

6) Powder-painted, corrosion resistant stainless steel in 0.8-1.2mm thick


Weight, Size & Loading Quantity

NW./GW.: 170/-(KG)

Product Size: L1500*W1500*H1350mm


20'GP: 4pcs

(SKD 9pcs)

40'HQ: 8pcs

(SKD 16pcs)


Remarks

1. Above quotation is valid for 60 days

2. Packing: Strong export carton box

3. Delivery time: 30 days after receipt of deposit

4. Terms of payment: 30% deposit when confirmation of order, balance paid before shipment.
