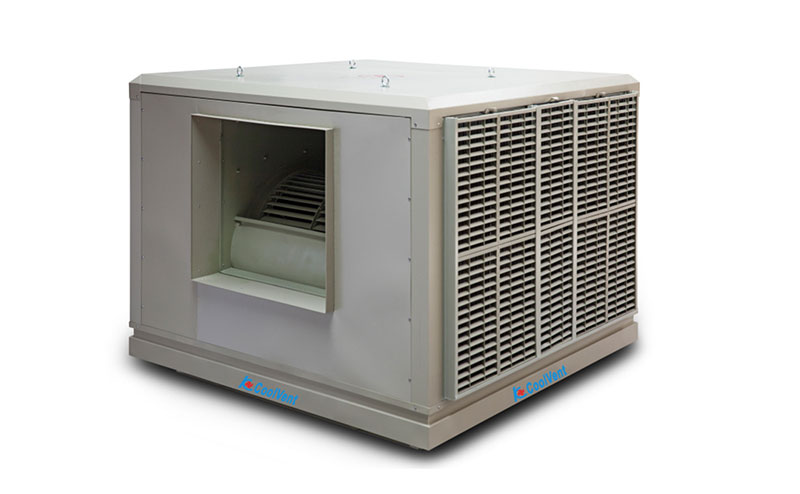

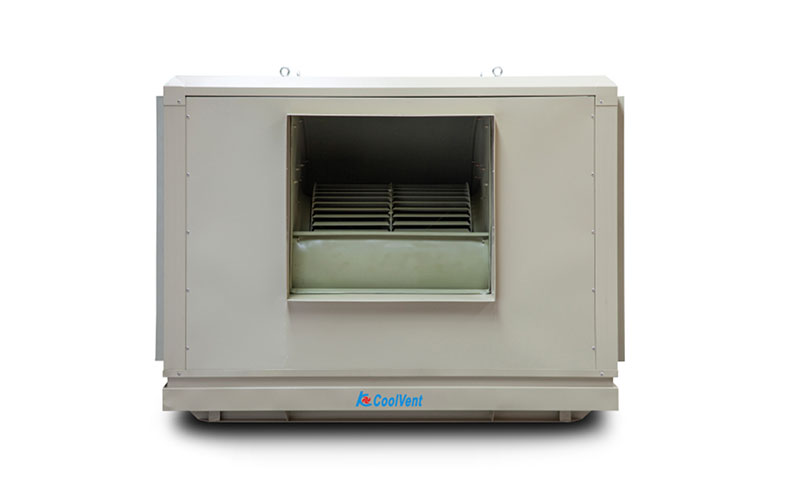

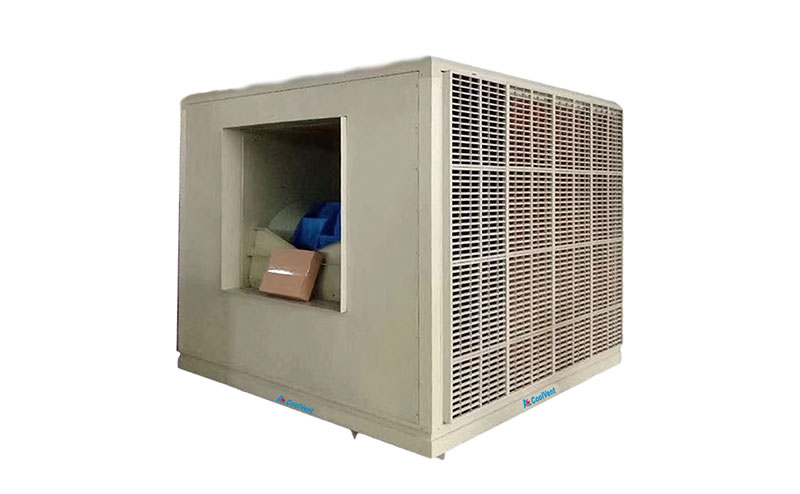

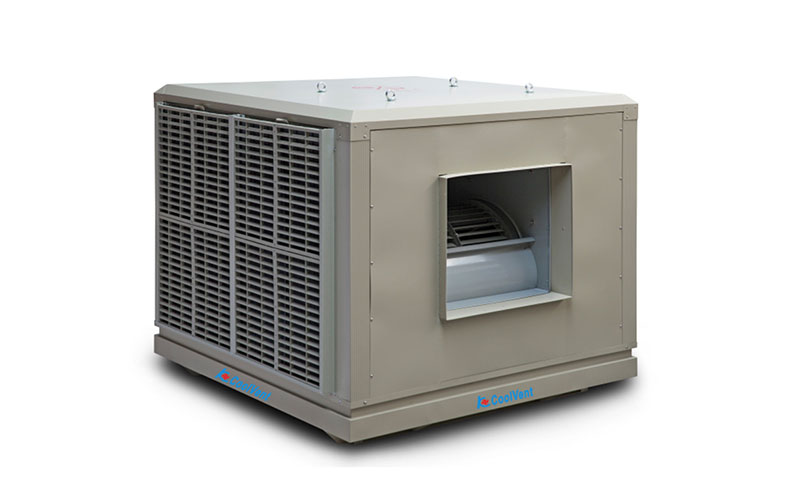

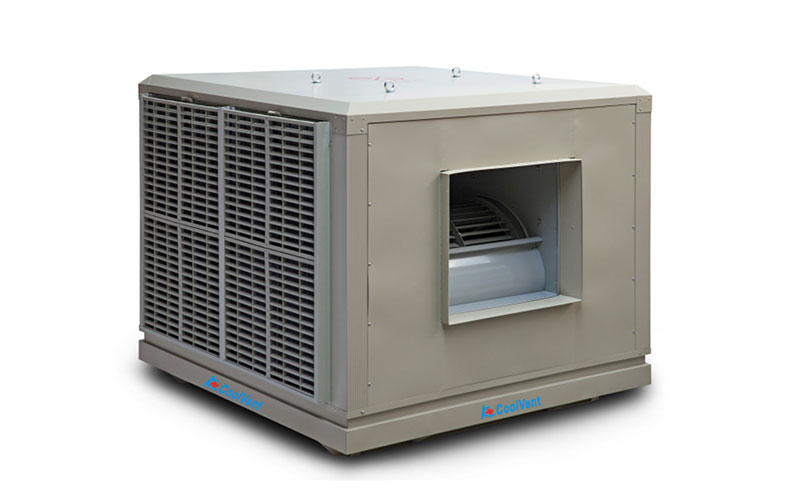

KCV-45AS Side Discharge

Factory Model: KCV-45AS Side Discharge

Power (kW): 11.0kW

Air Flow(m3/h): 45,000㎥/h  26,505 CFM


Product Introduction

Specification & Features


Power / Current: 11.0kW / 25.4A

Voltge / Frequency: 380-415V / 50~60Hz

Motor Class: Grade F, IP55, copper wire motor

Steel fan wheel / Centrifugal fan

LCD panel control

1 wind speed

Noise Level: <= 91dB(A)

Water Tank Capacity: 100L

Water Consumption: 120L/H

Ducting Distance: 65-80 meters

Air Pressure: 510Pa

Sizes of Cooling Pad: 1000x1000x100mm *4 pcs

3pcs of cooling pad for side charge unit

Size of Air Outlet: L858*H766mm

Applicable  Area(㎡): 300-450 m²


1) Water shortage protection & alarm

2) Stainless steel bottom base, top cover and stand column, plastic cooling pad frame with dust filters and cooling pads-5090

3) Efficient fan motor-4pole 1460RPM

4) Auto-protetive device

5) Balanced heavy-duty steel fan wheel

6) Powder-painted, corrosion resistant stainless steel in 0.8-1.2mm thick


Weight, Size & Loading Quantity


NW./GW.: 580/-(KG)

Product Size:

2000*2000*H1700mm

20'GP: 3pcs

40'HQ: 6pcs


Remarks

1. Above quotation is valid for 60 days

2. Packing: Strong export carton box

3. Delivery time: 30 days after receipt of deposit

4. Terms of payment: 30% deposit when confirmation of order, balance paid before shipment.
